Name: JT-C6200 Android 13 Industrial UHF RFID Handheld Reader | Impinj E710 | IP65 | 2D Barcode | NFC
Availability: InStock

Trang chủ RFID UHF 860-960MHz Đầu đọc RFID UHF

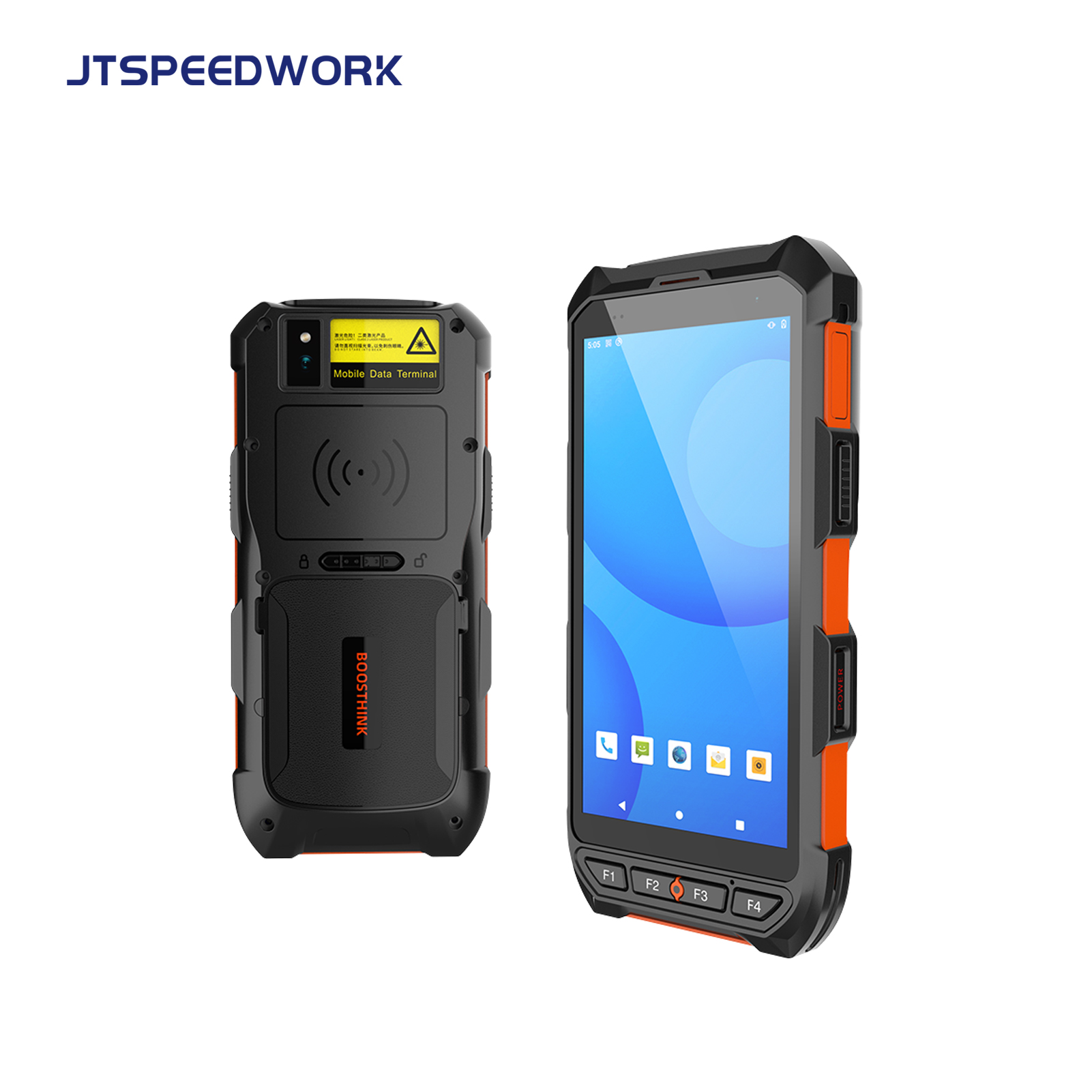

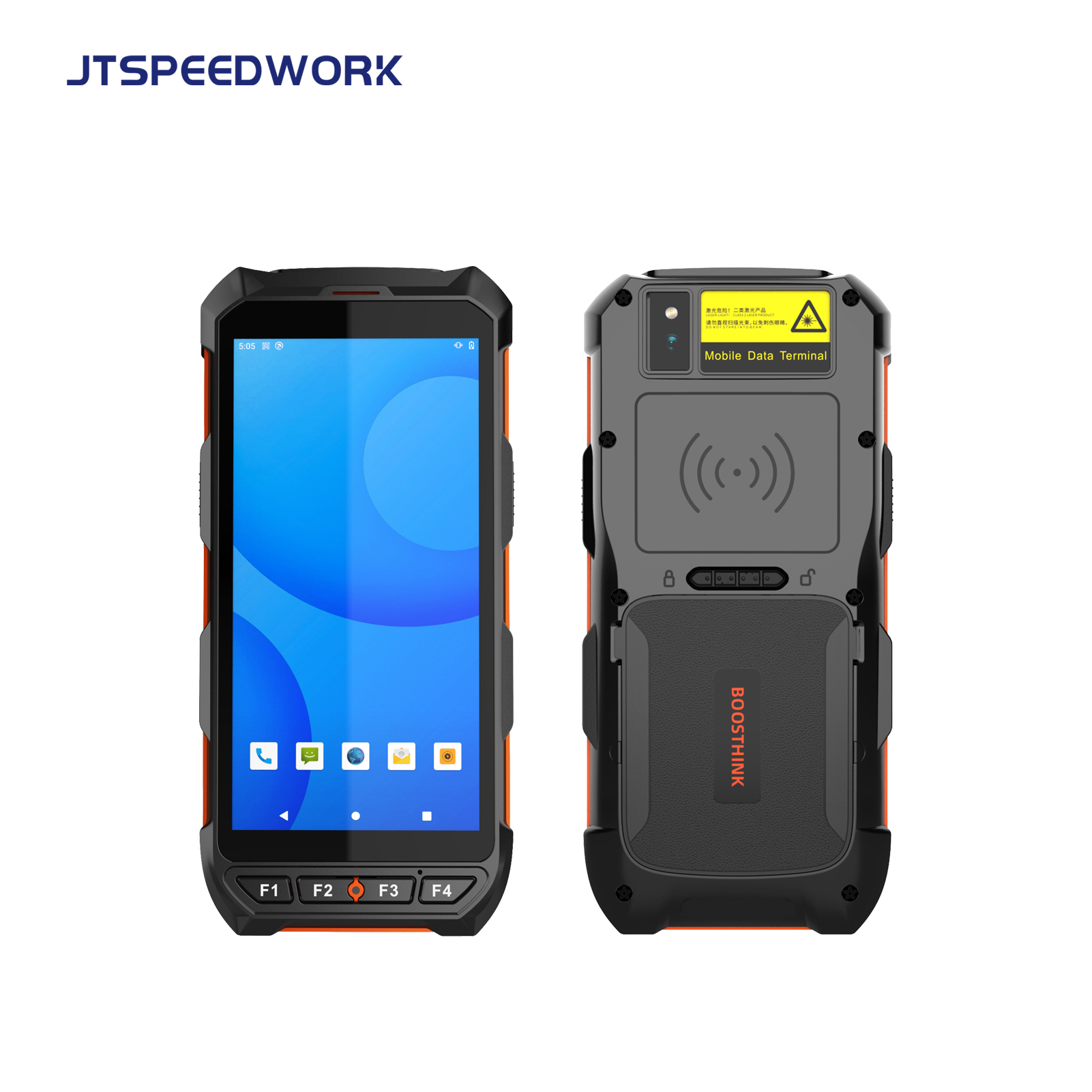

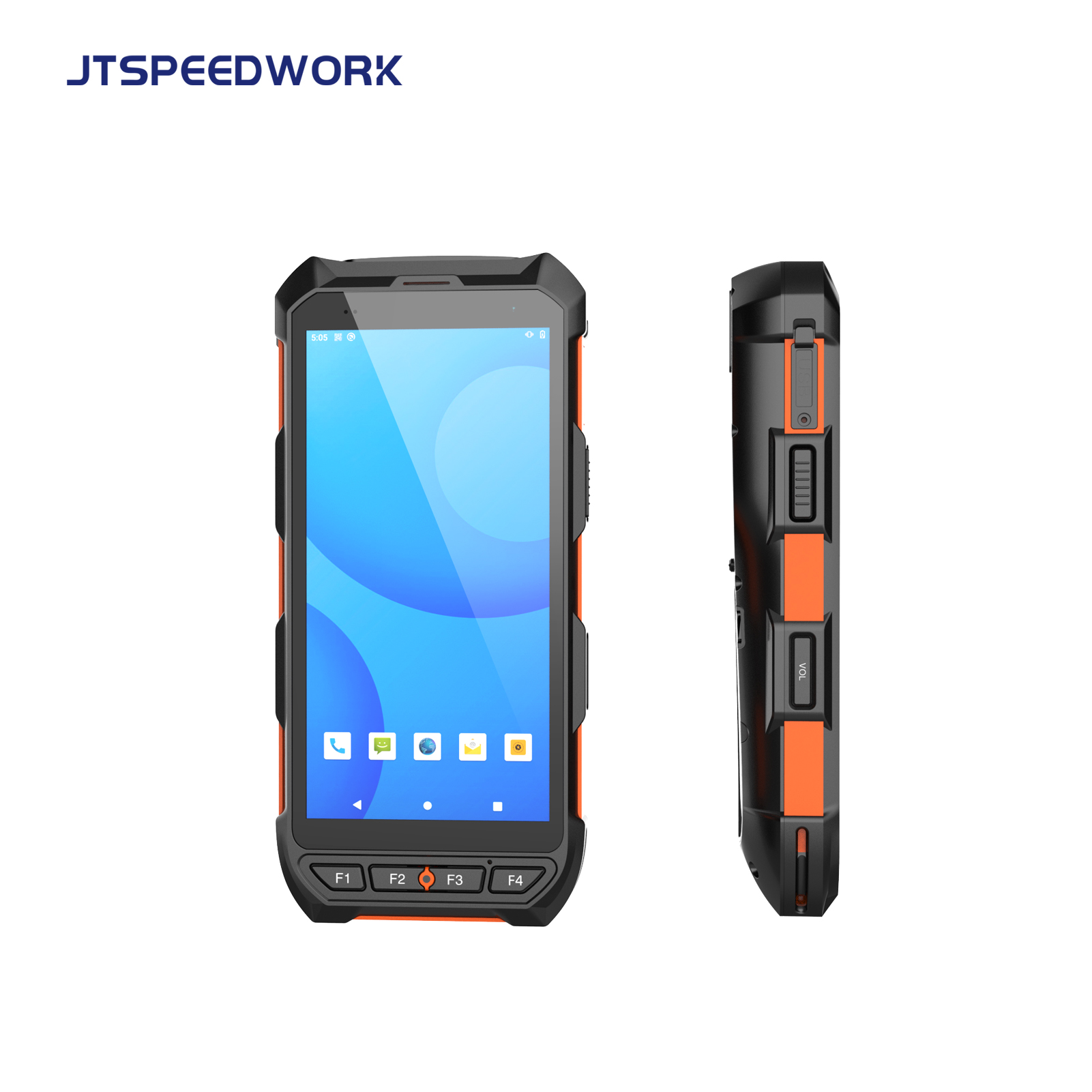

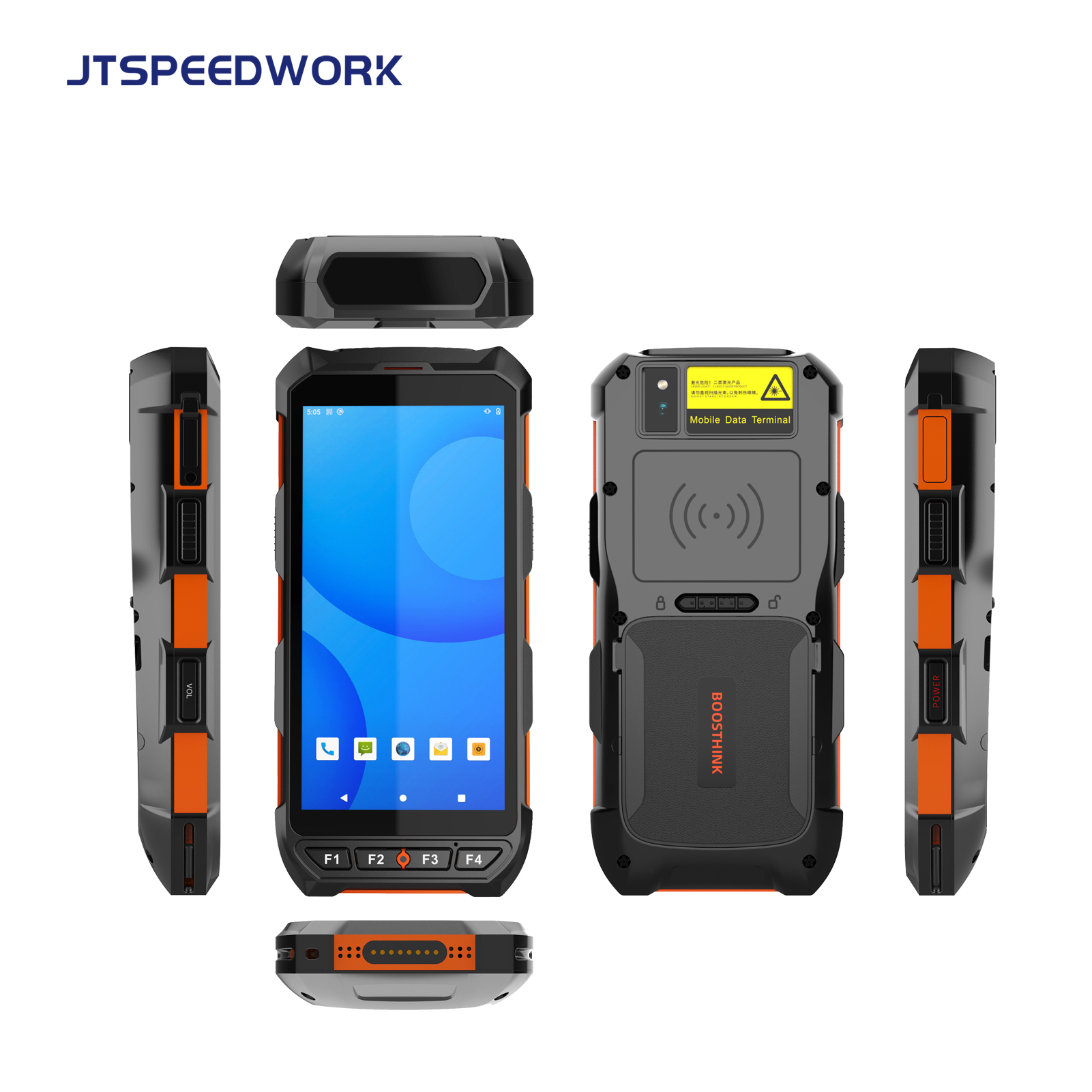

JT-C6200 Android 13 Industrial UHF RFID Handheld Reader | Impinj E710 | IP65 | 2D Barcode | NFC

Rugged Android 13 handheld terminal with Impinj E710 UHF RFID, 2D barcode scan and NFC. IP65 waterproof, long reading range for inventory and asset management.

Mã số mặt hàng :
JT-C6200
Màu sắc :
Orange and black
Độ lợi anten :
2dBi
Giao thức :
ISO18000-6C | ISO14443A&15693 | ISO11784&11785
Tần số hoạt động :
EU:865-868MHz | US:902-928MHz | NFC:13.56MHz | LF:125KHz/134.2KHz
Chip RF :
Impinj E710
Hệ điều hành :
Android 13.0
Functions :
UHF+Barcode+NFC | UHF+Barcode+LF
RAM+ROM :
4+64GB

Liên hệ ngay

Tải xuống

PHYSICAL CHARACTERISTICS		DATA COMMUNICATION
Dimension	170mm(H)x81mm(W)x28mm(D)±2 mm	WWAN	TDD-LTE Band 38, 39, 40, 41; FDD-LTE
Weight	Net Weight :400g(including battery&wrist strap)	WWAN	Band 1, 2, 3, 4, 5,7,8,12, 17, 20;WCDMA (850/1900/2100MHz);GSM/GPRS/Edge (850/900/1800/1900MHz);
Display	Tough 5.5 in. TFT-LCD(720x1440)touch screen with backlight	WLAN	2.4GHz/5.0GHz Dual Frequency, IEEE 802.11 a/b/g/n/ac
Backlight	LED backlight	WPAN	Bluetooth Class v2.1+EDR, Bluetooth v3.0+HS, Bluetooth v4.2
Expansions	2 PSAM, 2 SIM, 1 TF	GPS	GPS(A-GPS), accuracy of 5m
Battery	Rechargeable li-ion polymer,3.8V,5200mAh
PERFORMANCE CHARACTERISTICS		BARCODE READER(OPTIONAL)
CPU	Cortex A73 2.0GHz octa-core	2D Barcode	2D CMOS Imager
Operating System	Android 13.0		Honeywell N5703 2D Scan Engine/ Newland NLS-CM60/Newland NLS-N1
Storage	4GB RAM/64GB ROM,		Symbologies
Storage	MicroSD(max 256GB expansion)		PDF417, MicroPDF417, Composite, RSS TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode, Postal Codes, U PostNet, US Planet, UK Postal, Australia Postal, Japan Postal, Dutch Postal. etc.
USER ENVIRONMENT		RFID READER(OPTIONAL)
Operating Temp	-20℃ to 50℃	RFID LF	Frequency:125KHz/134.2KHz(FDX-B/HDX)
Storage Temp	-20℃ to 70℃-20℃ to 70℃		Protocol:ISO 11784&11785
Humidity	5%RH to 95%RH(non-condensing)		R/W Range 2cm to 10cm
Drop Specifications	5ft./1.5 m drop to concrete	RFID High Frequency/ NFC	Frequency:13.56MHz
Drop Specifications	across the operating temperature range		Protocol:ISO14443A&15693, NFC-IP1, NFC-IP2
Sealing	Ip65, IEC compliance		R/W Range 2cm to 5cm
ESD	±15kv air discharge, ±8kv direct discharge	RFID UHF	Frequency:865~868MHz or 902~928MHz
			Protocol:EPC C1 GEN2/ISO 18000-6C
DEVELOPMENT			Antenna Gain
SDK	Software Development Kit		Circular antenna(2dBi)
Language	Java		R/W Range
Environment	Android Studio or Eclipse		5m(tags and environment dependent)
COLOR CAMERA		ACCESSORIES
Resolution	Rear 13 megapixel, front 5.0 megapixel	Standard	1xPower Supply;1xLithium Polymer Battery;1xType-C cable
Lens	Auto-focus with LED ﬂashAuto-focus with LED ﬂash	Optional	Cradle
